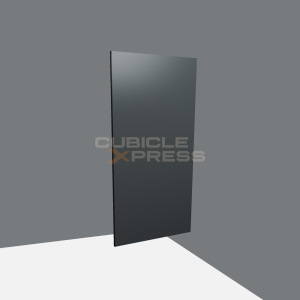

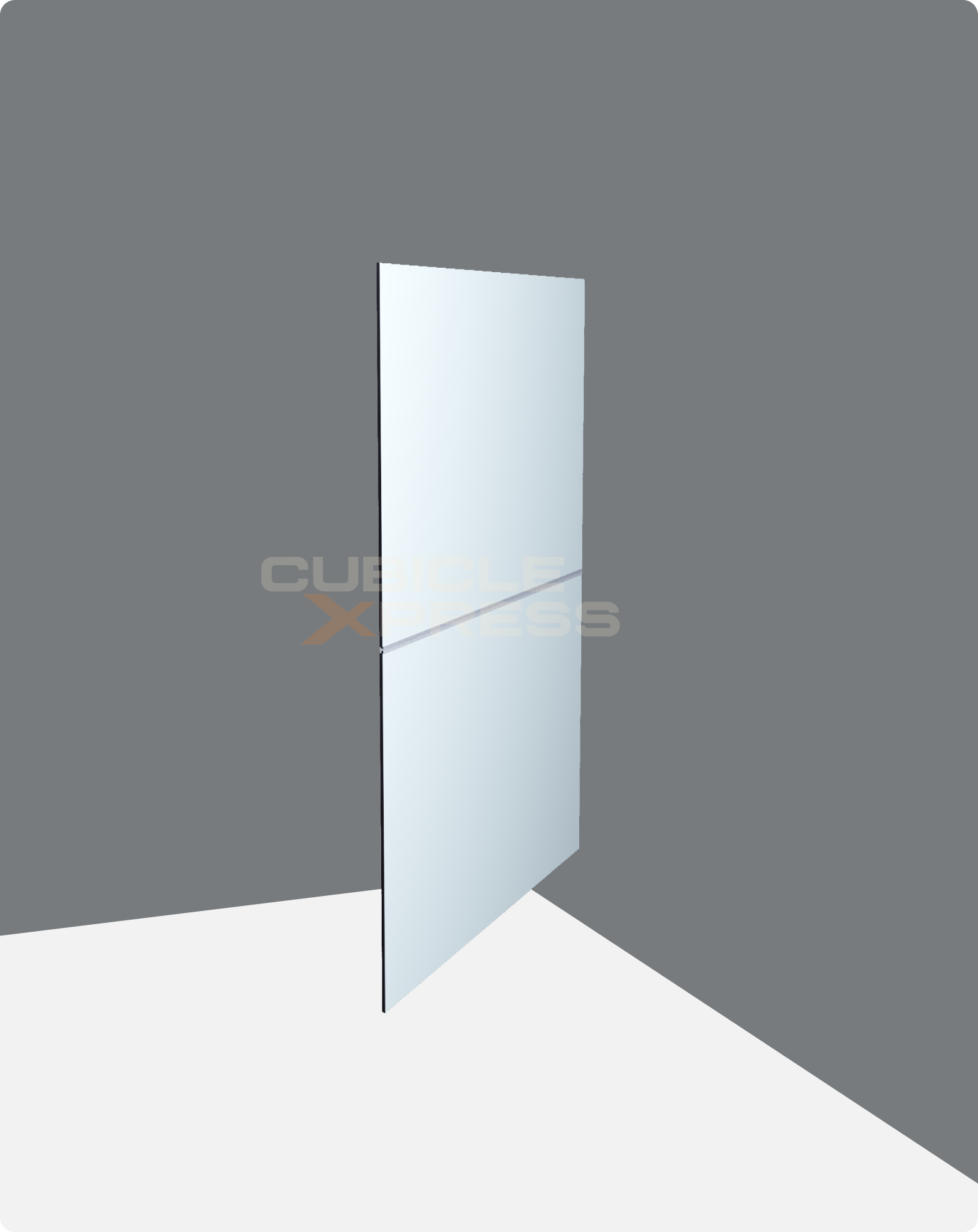

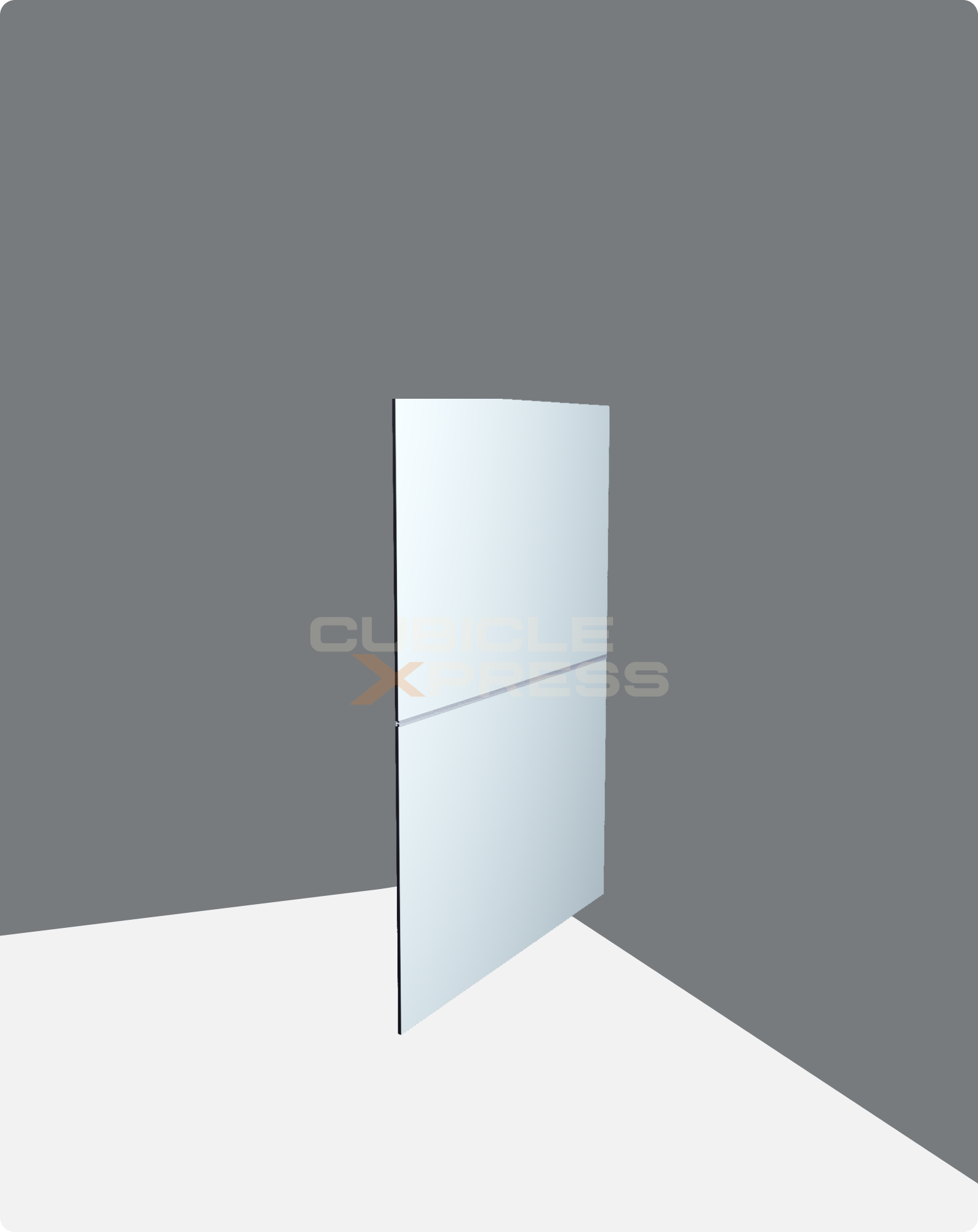

DIVIDER PANELS

Description

Providing and fixing toilet cubicle systems installed by Supercreations in standard dimensions of 1500mm width X 1800mm height with 12mm thickness. The solid grade Compact Laminate panels made of Phenolic resins under high pressure and temperature having density >1050 kg/cm3, which are resistant to heat, bacteria, chemical, scratch and impact & water immersion through permissible increase on weight will be <0.60~0.8%. Finished product will be as per approved texture, shade & drawing, detailing and developed according to IS-2046 and EN438 standards and as per fire retardant BS-476/97 standard. The product should have Green Guard Certificate. The toilet cubicle setup shall include necessary hardware fittings, made out of stainless steel (Grade-304), as per manufacturer’s specifications and approved by the engineer. All dividers shall be supported by aluminum powder coated U-profile fixed to walls & pilasters. All screws should be of stainless steel (Grade-304). All visible edges shall be chamfered.
