Providing and fixing toilet cubicle systems of DEBO/STYLAM make and installed by Supercreations in standard dimensions of 900-1200mm width X 1500mm depth X 2105mm height with a door size of 600mm width X 1830mm height with 12mm thickness. The solid grade Compact Laminate panels made of Phenolic resins under high pressure and temperature having density >1400 kg/m3, including doors, pilasters & intermediate panels, which are resistant to heat, bacteria, chemical, scratch and impact & water immersion through permissible increase on weight will be <0.60~0.8%. Finished product will be as per approved texture, shade & drawing, detailing and developed according to IS-2046 and EN438 standards and as per fire retardant BS-476/97 standard. The product should have Green Guard Certificate. The toilet cubicle setup shall include necessary hardware fittings, made out of stainless steel (Grade-304 & 316), as per manufacturer’s specifications and approved by the engineer.
SS 304 U-channels

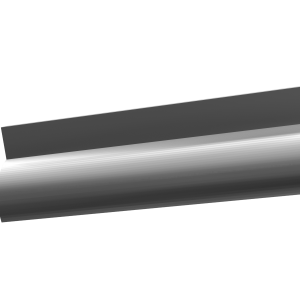

SS304 top rail
SS 316 adjustable foot of 150mm
SS 316 indicator lock
SS 316 door knob
SS 316 coat hook
The top fitting arrangement shall comprise of Aluminum Anodized SS finish top rail of 125mm wide fixed to walls by L-Bracket. All screws should be of stainless steel (Grade-304). All pilasters shall be supported by Aluminum Anodized top rail gives suspended floating look with a clearance height of 100mm. The intermediate panel shall be of one continuous panel without any joint. All visible edges shall be chamfered.
